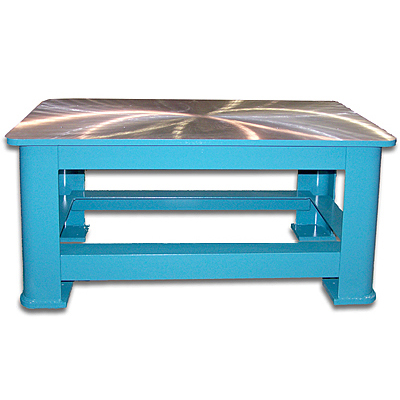

Utility Base 101

The Model 101 is a multi-purpose, utilitarian base for supporting general types of machinery such as metalworking.

• A rugged moderate cost solution for many applications.
• Sturdy, all steel, unitized construction.
• 1/4″ wall frame.
• Welded TOP PLATE; stress relieved, shot blast, ground to .002″ per foot cumulative, flatness and primed.
• Center legs and cross braces are standard for 72″ and larger bases.
• Standard sizes are 24″ x 24″ thru 48″ x 48″ in 6″ increments, 48″ x 48″ thru 72″ x 96″ in 12″ increments.
• Standard top plates starting thickness of 3/4″, 1″, 1-1/4″ and base heights of 24″, 30″, 36″.
